Verkortingshaak met gaffel kwaliteitsklasse 10
verkortingshaak met gaffel
verkortingshaak met gaffel pulverbeschichted: pink

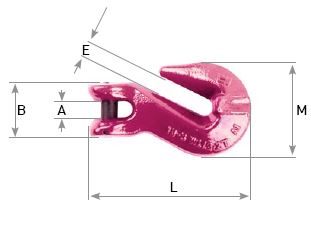

| Artikelnummer | Größe in Zoll | Größe in mm | A +/- 0,5mm | B +/- 1,5mm | E +/- 1mm | M +/- 2mm | L +/- 2mm | Bruchkraft in to | Belastbarkeit in to | Gewicht ca. in kg/St. |
| GC01-4601/6 | 1/4 | 6 | 7,5 | 32,0 | 8,0 | 43,5 | 75,0 | 5,60 | 1,40 | 0,22 |
| GC01-4602/8 | 5/16 | 7/8 | 9,5 | 36,0 | 10,8 | 53,0 | 91,5 | 10,00 | 2,50 | 0,34 |
| GC01-4603/10 | 3/8 | 10 | 12,0 | 46,0 | 13,5 | 72,0 | 126,0 | 16,00 | 4,00 | 0,82 |
| GC01-4604/13 | 1/2 | 13 | 15,0 | 59,0 | 16,5 | 96,0 | 163,5 | 26,80 | 6,70 | 1,75 |
| GC01-4605/16 | 5/8 | 16 | 17,5 | 70,0 | 19,2 | 112,5 | 183,5 | 40,00 | 10,00 | 2,88 |
| GC01-4606/20 | 3/4 | 20 | 24,0 | 85,0 | 24,0 | 143,0 | 224,0 | 64,00 | 16,00 | 4,84 |
| GC01-4607/22 | 7/8 | 22 | 27,0 | 100,0 | 27,0 | 160,5 | 262,0 | 76,00 | 19,00 | 8,30 |
